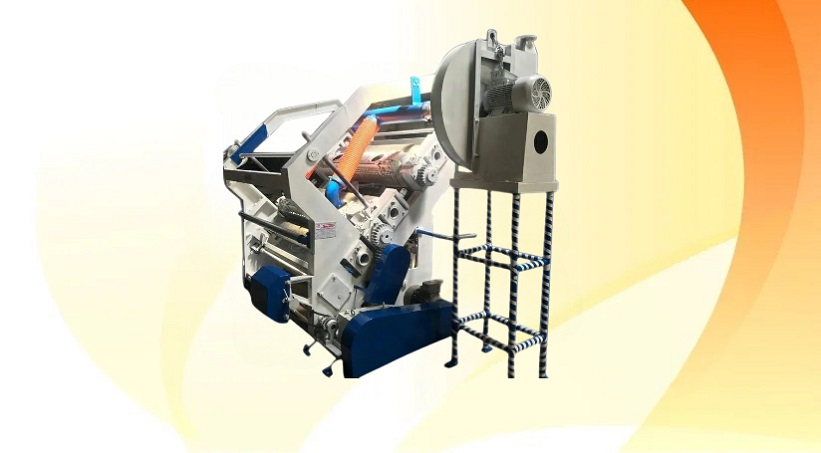

Double profile fingerless corrugation machine


BOXMAC Senior Make Double Profile Fingerless Heavy Duty High Speed Bearing mounted Paper Corrugation Machine with one set of Narrow Flute rolls, with ‘B’ Flute & ‘E’ Flute with, A/C Variable Frequency Drive (VFD) Motor with Blower system complete Set. 2-Ply board pass-out by vacuum suction method, with blower control system. -Bearing of corrugated and pressure roller are having high temperature lubricate grease.

Technical Specifications:

(A) One Set of Flute Rolls ‘B’(52 Nos)and one set of flute rolls ‘E’(86 Nos) type

(B) Flute Rolls material EN19.

(C) Flute Rolls Dia 320 mm.

(D) Gum Roll & Gum Pipe is Hard Chrome Plated.

(E) Glue circulation Pump.

(F) Patta less glue setting attachment with glueCirculation system fitted with 1 H.P Motor.

(G) Electric Heaters 5 Nos.of 11 Kw & Pre Heaters- 2Nos with 3 Kilowatt each.

(H) 7.5 H.P Motor (SIEMENS) with Variable Speed A.C. Drives.

(I) Vacuum Suction Blower with 10 H.P. motor.

(J) Control panel for heat control fitted with thermostats.

(K) Self Loading Twin Shaft hydraulic reel stand

(L) With all Standard Accessories complete
