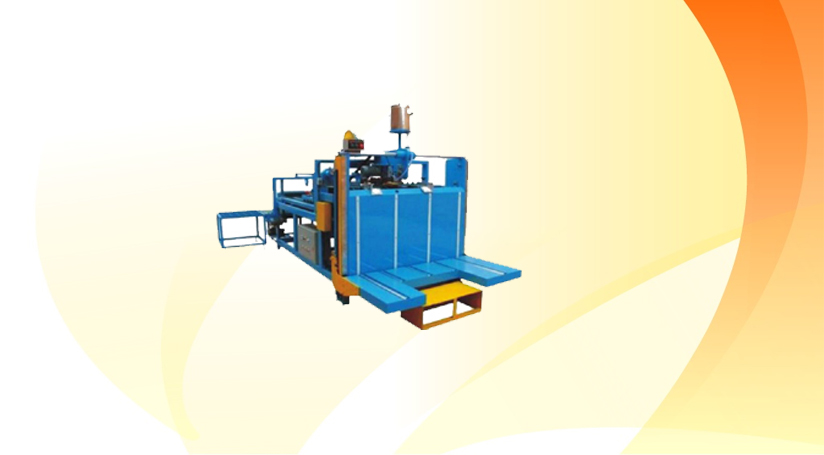

Semi-automatic Folder Gluer Machine


  • Automatically count the finished product (1-99 sheets).
  • Deliver to the latter part of machine in pile for stacking; number of boxed in a pile can be set.
  • Air pump assists in drying and agglutinating quickly to reduce inferior product.
  • Easy operation; only two operators are needed from semi-finished product gluing to finished product.
  • Automatically count the paper feeding.
  • With flap function to avoid forficiform cut.


Technical Specifications

Max (L+W)x2 Min (L+W)x2 Height of paper feeding Speed Power Machine size Weight
2460x1515mm 340x900mm 900mm 40M/MIN 3.75kw 4500x2100mm 2000kg
