Sheet Pasting Machine

Manufacturer and Exporter of: Paper Corrugated Machinery, 3/5 Ply Automatic Paper Corrugated board making plant, Corrugated box making machinery, Die Punching Cutting & Creasing Machine, Paper Bag Making Machine and other allied machinery of packaging industry.

  • Home
  • Sheet Pasting Machine

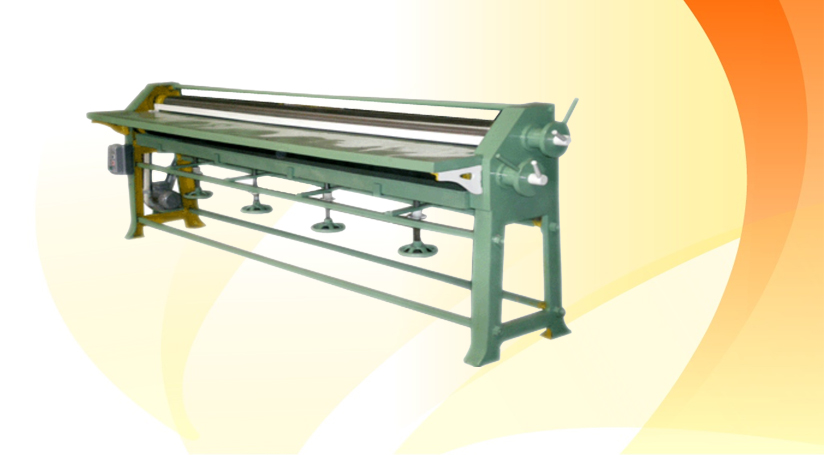

Sheet Pasting Machine


Pasting Machine is useful for gluing the fluted side of the board and for pasting board to paper as will as to board for making 3-5-7 ply board. The model of this machine is different than the others and is full-enclosed model. The Machine is adjustable by rotating handle provided on one side of machine.

Technical Specifications

Size Speed Power Required Floor Space Height Gross Weight
65'' 150RPM O.5 H.P. 80''X30''
50'' 500KG
75'' 150RPM O.5 H.P. 90''X30'' 50'' 600KG
85'' 150RPM 1.0 H.P. 100''X30'' 50'' 700KG
95'' 150RPM 1.0 H.P. 110''X30'' 50'' 800KG
105'' 150RPM 1.0 H.P. 120''X30'' 50'' 900KG`
